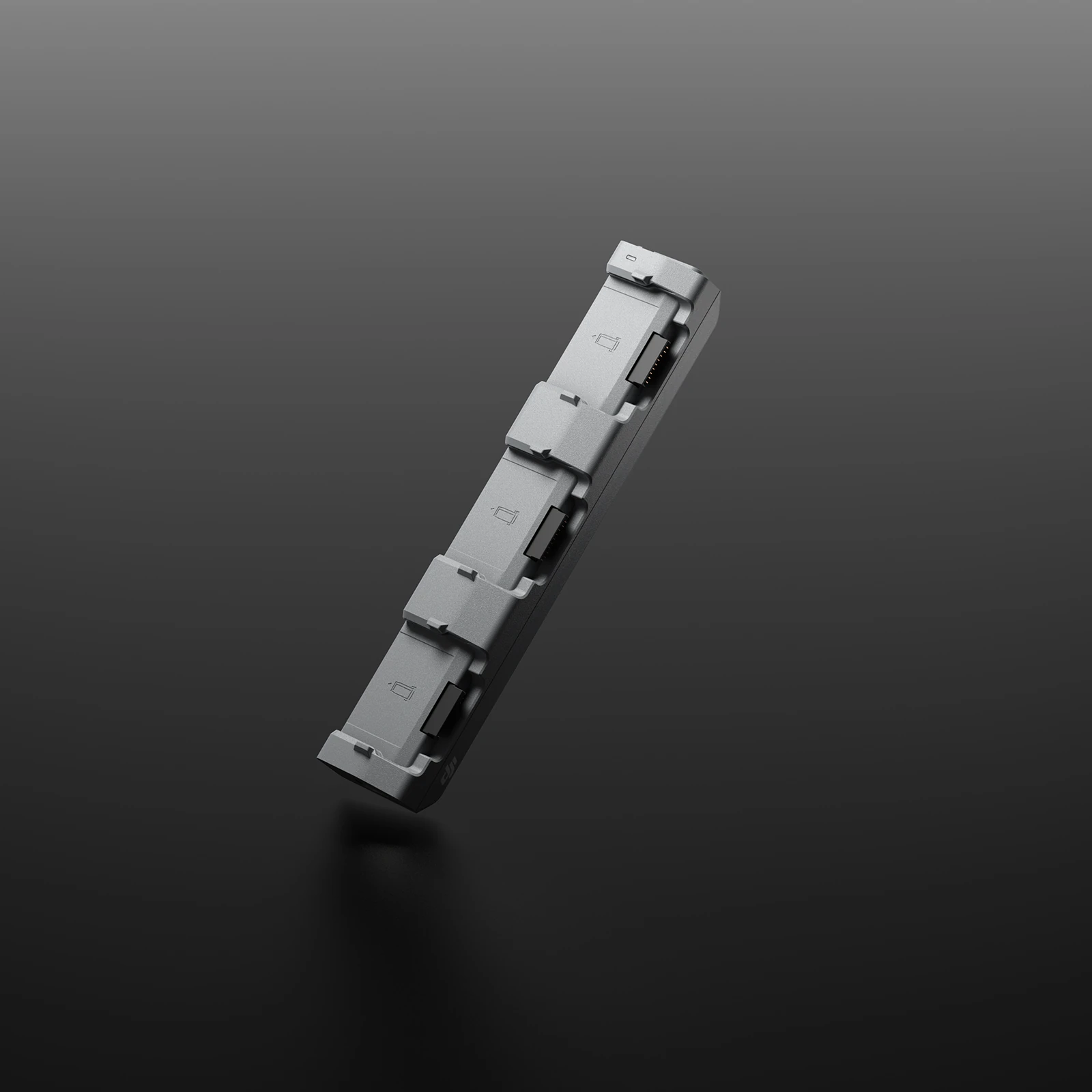

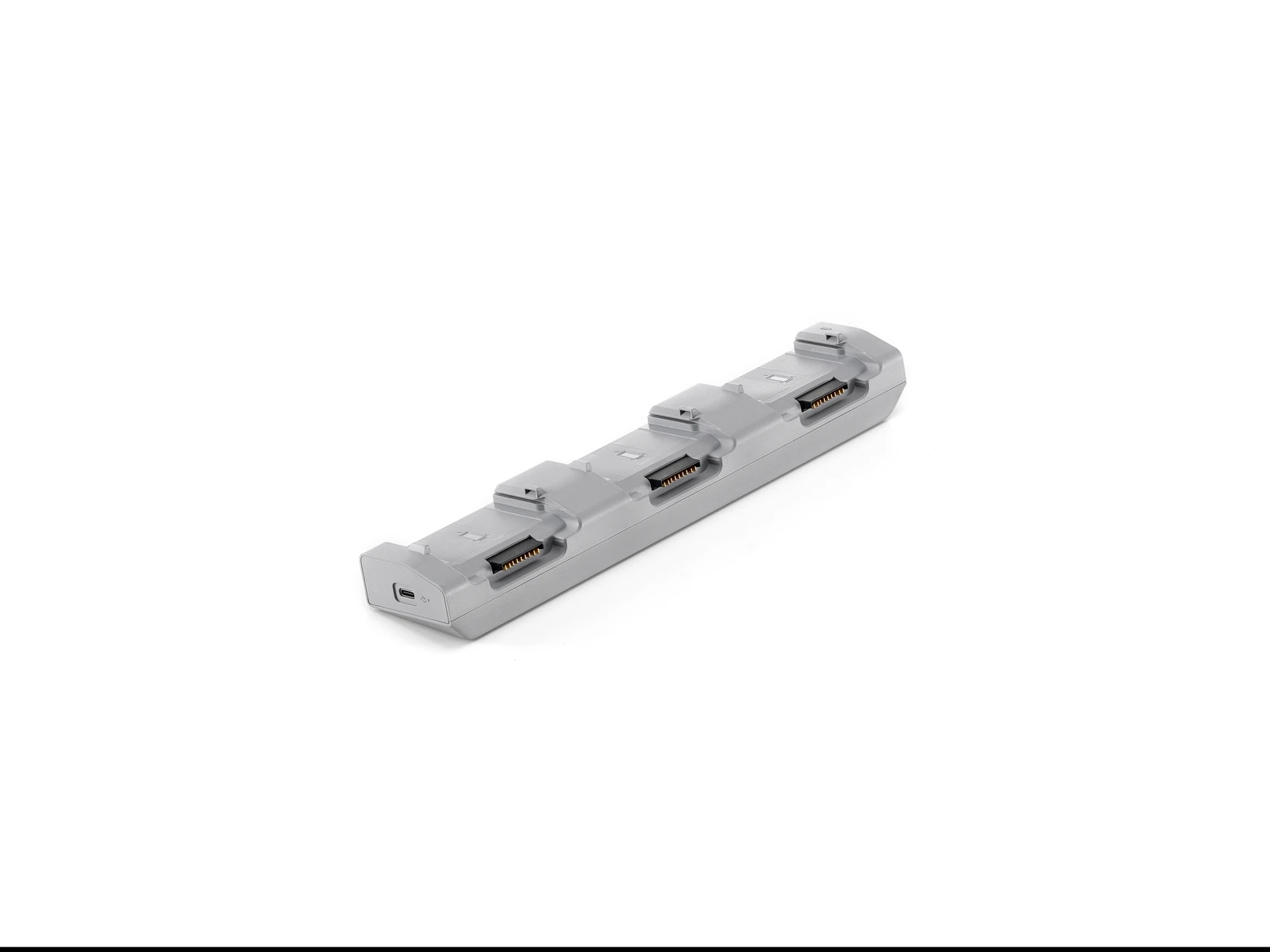

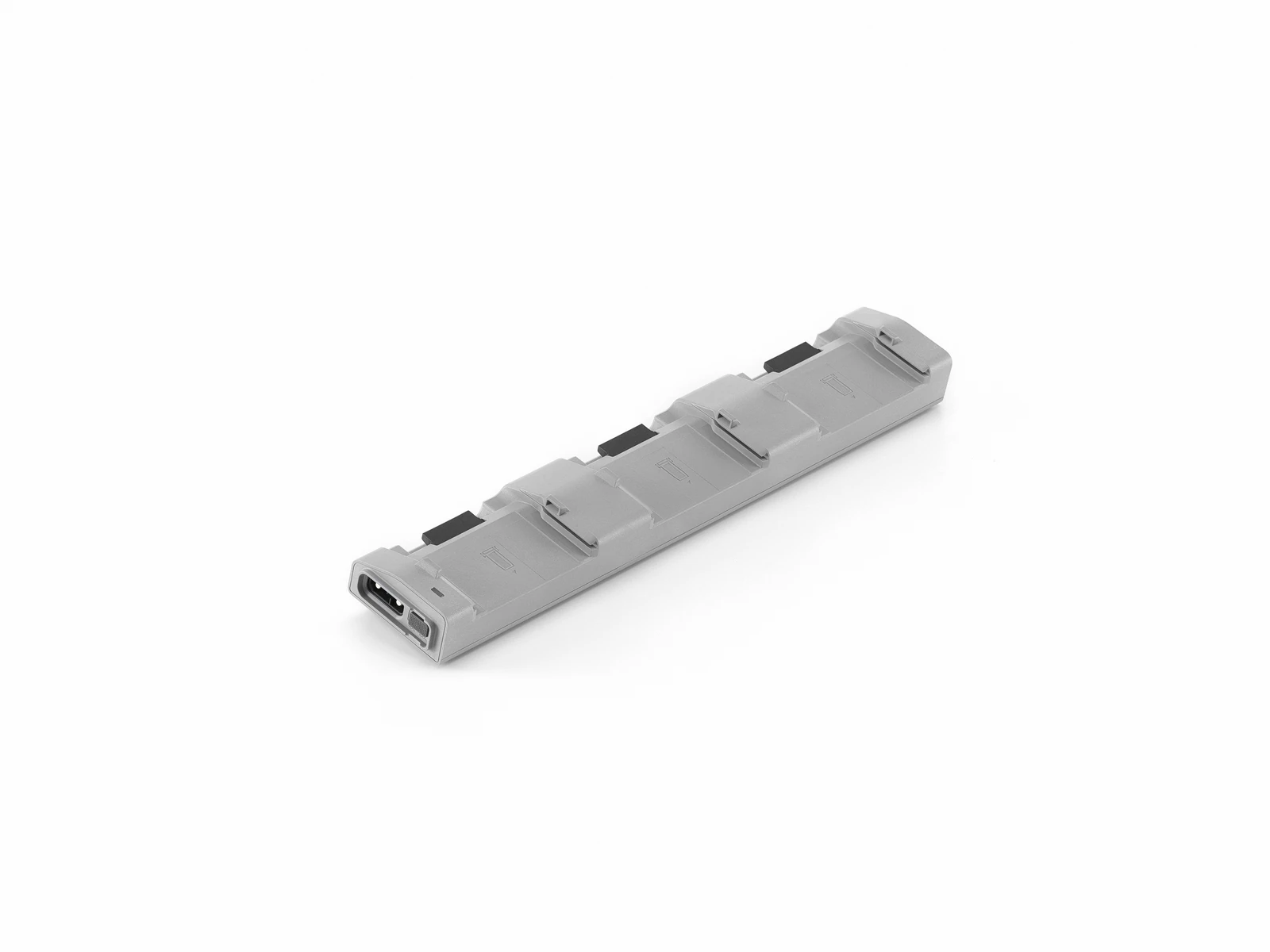

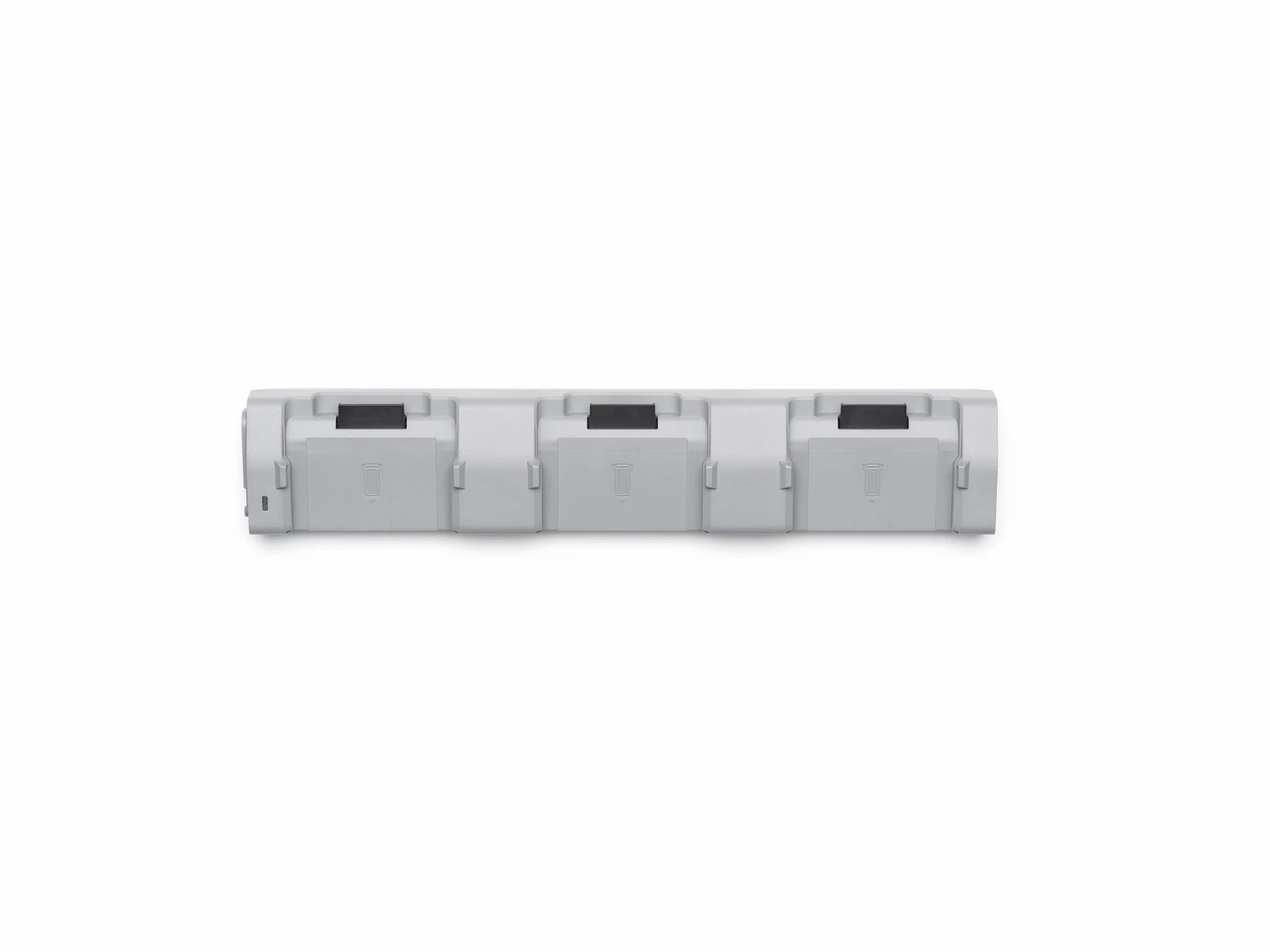

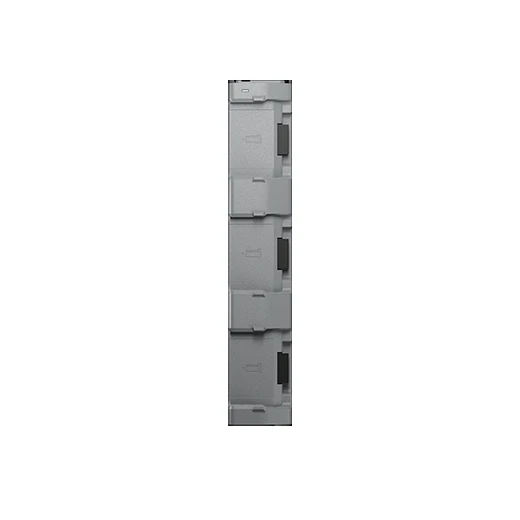

DJI Matrice 4D Series 240W Charging Hub
DJI · AIQ-0017
The 240 W charging hub for Matrice 4D Series batteries.
- Rated power240 W
Overview
About this product.
The Matrice 4D Series charging hub is rated at 240 W, more than double the 100 W hub used by the Matrice 4 Series, which is what the larger 149.9 Wh battery needs to turn around at a comparable pace.
It is the hub for teams operating the aircraft by hand. A Dock 3 site charges the aircraft in place instead.
Key capabilities
- 240 W rated power
- Charges Matrice 4D Series batteries
Typical applications
Matrice 4D and 4TD battery turnaround away from a dock.
Technical data
Specifications.
| Charging | |
|---|---|
| Rated power | 240 W |
Questions
Questions we’re asked.
The charging hub
What are the two modes?
Standard charges each battery to 100% in sequence. Ready-to-Fly charges each to 90% and holds it there. A switch on the side selects the mode; three batteries charge in sequence.
How long does a charge take, and from what?
From 15%, about 40 minutes to full in Standard mode or about 30 minutes to 90% in Ready-to-Fly, from the DJI 240W Power Adapter. Third-party USB-C chargers are not supported. A DJI Power series station can feed it through its SDC port, on the station’s latest firmware.
