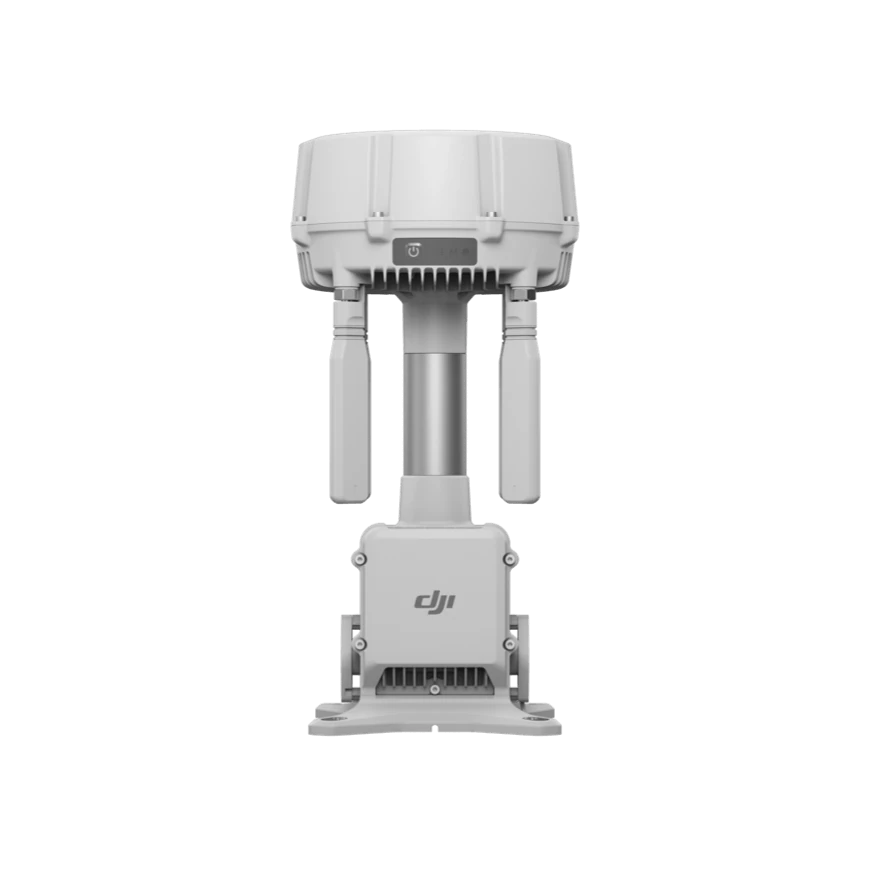

DJI O4 Ground Station
DJI · AIQ-0112
A PoE-powered ground relay reaching 40 km to a Matrice 400, IP67 and rated from -40°C to 55°C.
- Range to Matrice 40040 km
- PowerEthernet PoE
- Weight2.68 kg
- Ingress protectionIP67
Overview
About this product.
The O4 Ground Station is a fixed relay that extends an aircraft’s transmission link. Between a Matrice 400 and the station the range reaches 40 km under IC, and 25 km under SRRC and CE.
It is powered and networked over a single Ethernet cable using PoE, drawing about 17.1 W in gateway mode without heating, and mounts on an expansion bolt or on M6 screws at 60 mm centres. At 2.68 kg, rated IP67 and specified from -40°C to 55°C on PoE++, it is built to be installed once and left.
Key capabilities
- 40 km to a Matrice 400 (IC), 25 km (SRRC/CE)
- Powered and networked over one PoE cable
- Approx. 17.1 W in gateway mode
- IP67, -40°C to 55°C on PoE++
- 2.68 kg, bolt or M6 mounting
Typical applications
Extending transmission range from a fixed mast or structure, and remote sites operating beyond controller range.
Technical data
Specifications.
| Transmission | |
|---|---|
| Range to Matrice 400 (IC) | 40 km |
| Range to Matrice 400 (SRRC/CE) | 25 km |
| General | |
| Power | Ethernet PoE |
| Typical consumption (gateway mode) | 17.1 W |
| Weight | 2.68 kg |
| Ingress protection | IP67 |
| Operating temperature (PoE++) | -40 to 55 °C |
| Mounting | Expansion bolt φ6×70 mm or M6 at 60 mm centres |
