Product

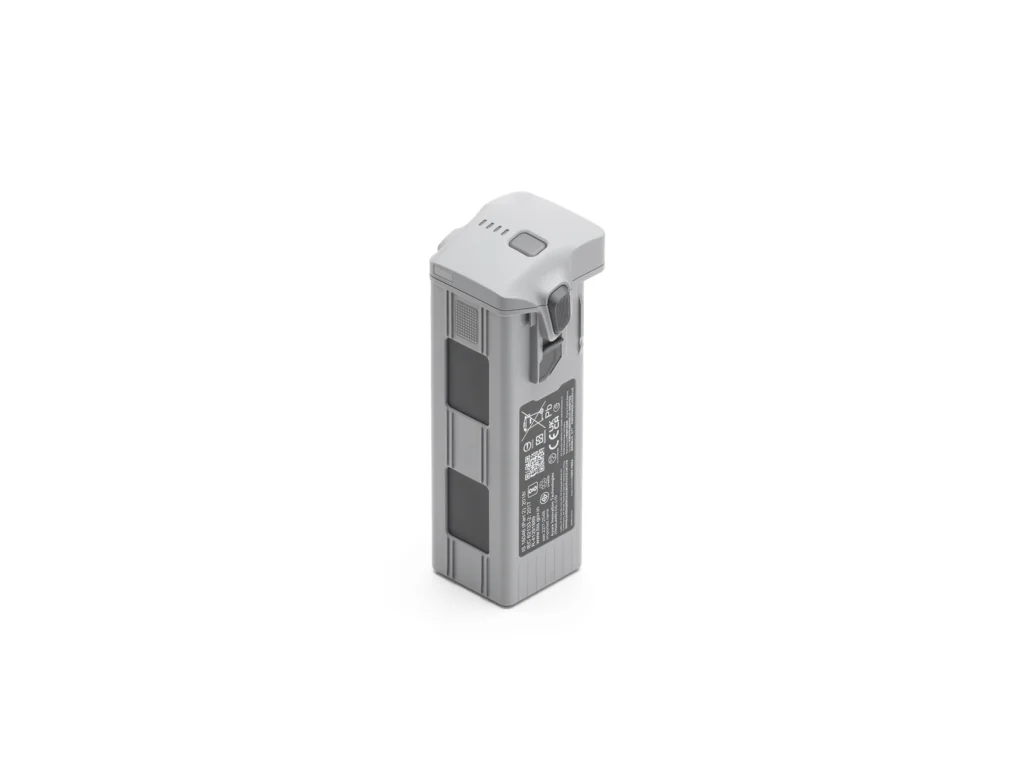

Matrice 4 Series Battery
DJI · AIQ-0033
The Matrice 4E and 4T flight battery: 6,741 mAh, 99.5 Wh, 401 g.
- Capacity6,741 mAh
- Energy99.5 Wh
- Weight401 g
- Cycle count200 cycles
Overview
About this product.
The Matrice 4 Series flight battery is a 4-cell lithium-ion pack: 6,741 mAh at a standard 14.76 V, giving 99.5 Wh in 401 g.
It charges between 5°C and 40°C and does not support low-temperature charging, which is worth planning around in winter or at altitude. Rated for 200 cycles.
Key capabilities
- 6,741 mAh, 99.5 Wh
- 401 g, Li-ion 4S
- 200-cycle rated life
- Charges 5°C to 40°C, no low-temperature charging
Typical applications
Matrice 4E and 4T flight operations.
Technical data
Specifications.
| Battery | |
|---|---|
| Capacity | 6,741 mAh |
| Energy | 99.5 Wh |
| Weight | 401 g |
| Battery type | Li-ion 4S |
| Standard voltage | 14.76 V |
| Cycle count | 200 cycles |
| Charging temperature | 5 to 40 °C |
Questions
Questions we’re asked.
The battery
How is it charged?
Only in the Matrice 4 Series Charging Hub. The aircraft does not charge its own battery. It supports the PD fast-charging protocol.
How long does a charge take?
With the 100W hub and the DJI 100W portable charger, about 78 minutes to full in Standard mode or about 60 minutes to 90% in Ready-to-Fly. With the 200W hub and the DJI 240W portable charger, about 55 and 40 minutes.
What are its temperature limits?
It operates from -10°C to 40°C, with shorter flight time in the cold, and it does not self-heat. It recharges between 5°C and 40°C.
