Matrice 4 Series Charging Hub
DJI · AIQ-0034
A 100 W hub that charges four Matrice 4 Series batteries in sequence, with a storage mode that stops at 90%.
- Batteries per cycle4, in sequence
- Rated power100 W
Overview
About this product.

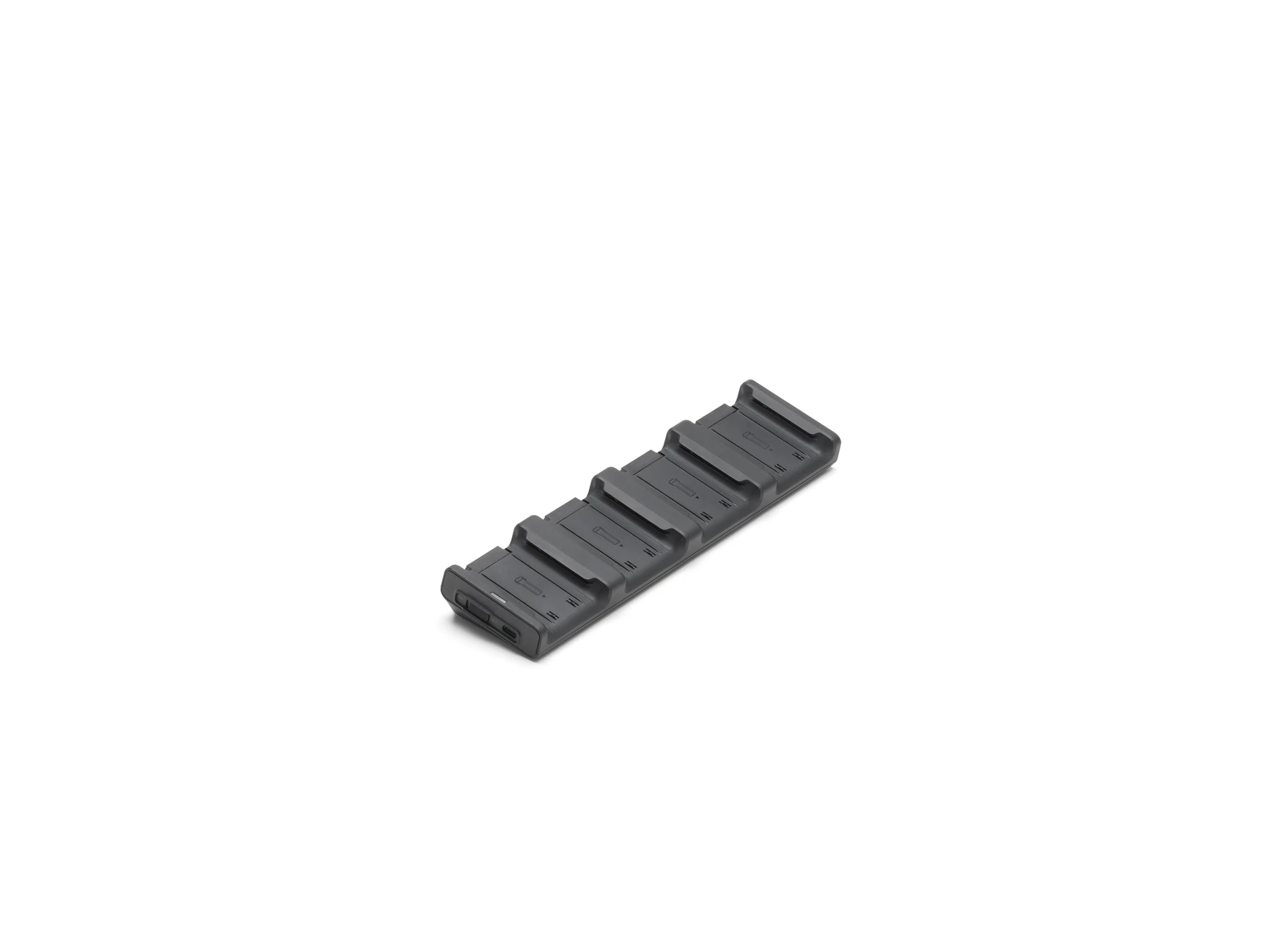

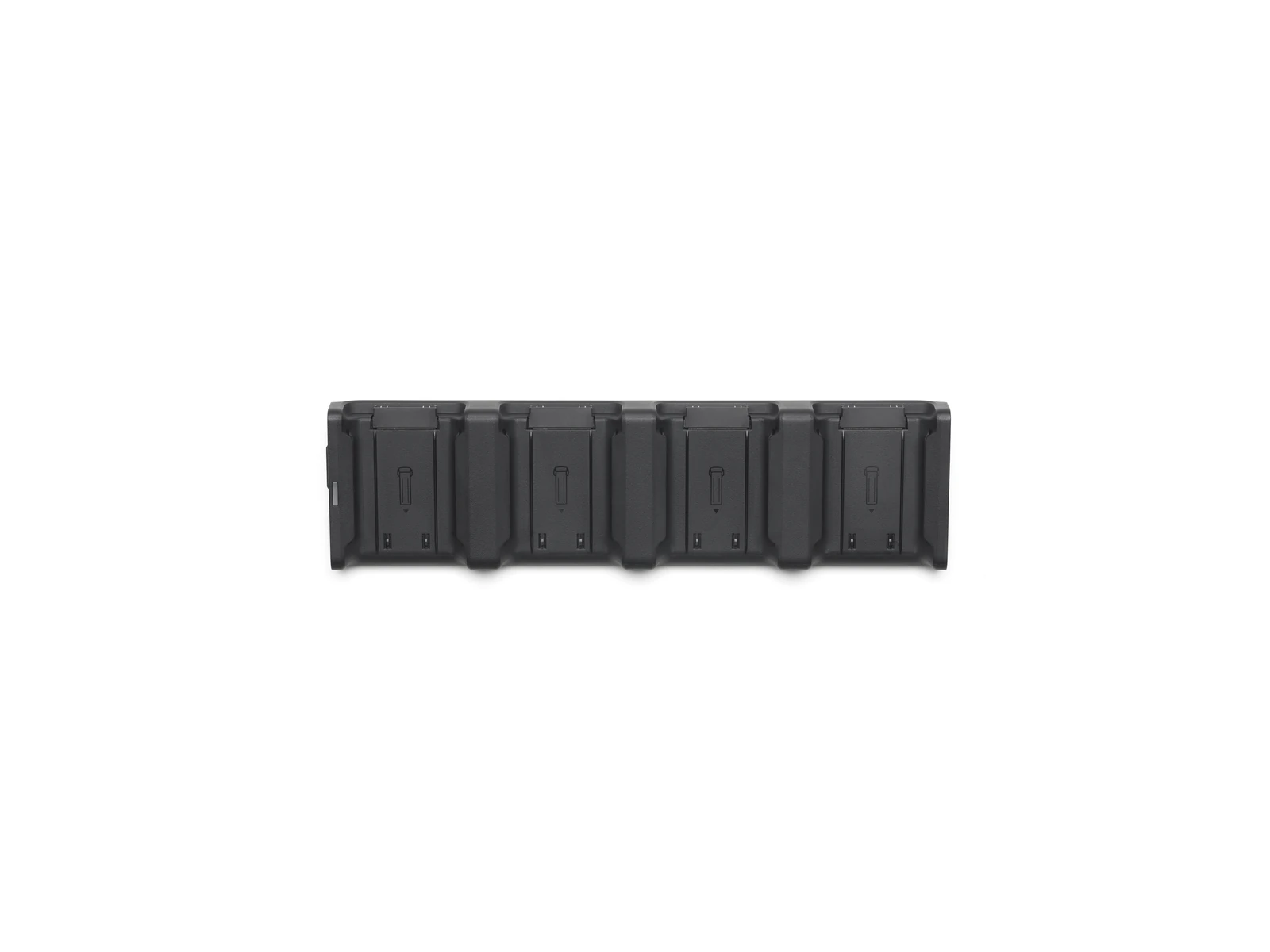

The Matrice 4 Series charging hub takes four batteries and charges them in sequence at up to 100 W, drawing USB-C power at 5–20 V.
Two modes matter for battery life rather than speed. Standard mode charges to 100%; standby mode stops at 90%, which is the state to leave packs in when they are not flying the next day. It charges between 5°C and 40°C.
Key capabilities
- Four batteries charged in sequence
- 100 W rated power over USB-C
- Standard mode to 100%, standby mode to 90%
- Charges 5°C to 40°C
Typical applications
Matrice 4E and 4T battery turnaround and storage.
Technical data
Specifications.
| Charging | |
|---|---|
| Batteries per cycle | 4, in sequence |
| Rated power | 100 W |
| Input | USB-C 5–20 V, max 5 A |
| Output | 11.2–17 V |
| Charging temperature | 5 to 40 °C |
Questions
Questions we’re asked.
The charging hub
What are the two modes?
Standard charges each battery to 100% in sequence. Ready-to-Fly charges each to 90% and holds it there for quick deployment. A switch on the side selects the mode. It charges four batteries in sequence.
Which charger does it need?
The DJI 100W portable charger on its C1 port, or another PD charger over 100 W. (DJI’s 200W hub is a different unit: it takes only the DJI 240W portable charger or the DJI Power 1000 through its SDC cable, and its USB-C port is for configuration and firmware, not charging.)
