Product

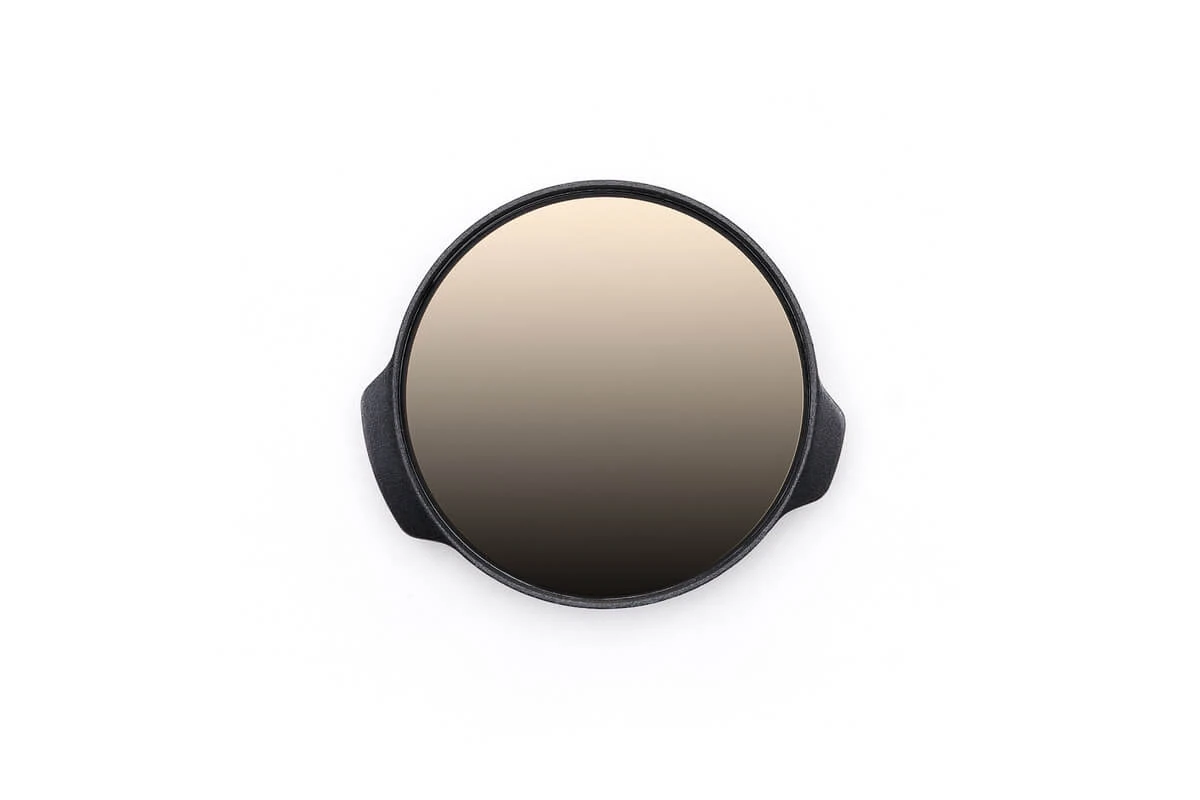

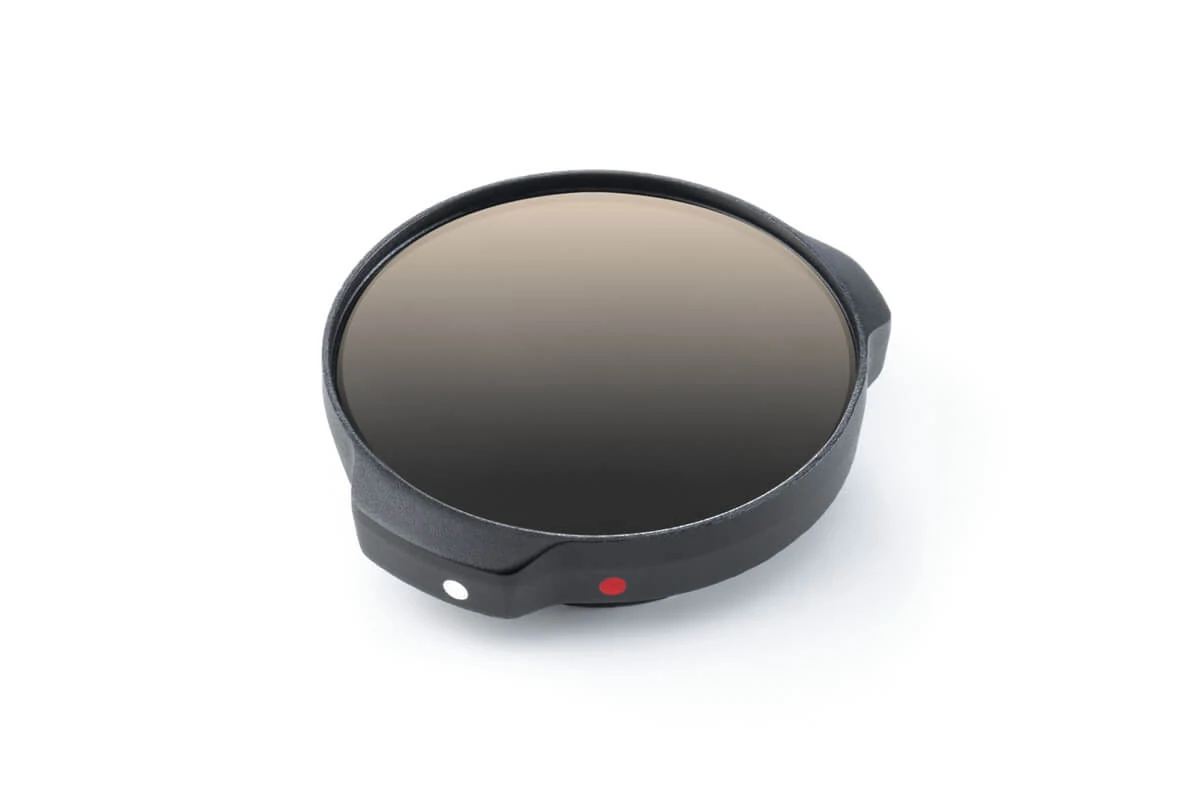

Zenmuse H30T Infrared Density Filter
DJI · AIQ-0129
The Infrared Density Filter for the Zenmuse H30T, raising thermal measurement to 1600°C.
- Thermal measurement with filter, low gainto 1600 °C
- Thermal measurement with filter, high gainto 450 °C
Overview
About this product.
This filter extends what the Zenmuse H30T’s thermal camera can measure. Unfiltered, the H30T reads -20°C to 150°C in high gain and 0°C to 600°C in low gain. With the Infrared Density Filter fitted, those ranges become 450°C and 1600°C respectively.
That is the difference between reading a hot component and reading a fire, and it is why the H30T’s headline 1600°C figure carries a condition: the filter is a separate item, and the camera does not reach that range without it.
Key capabilities
- Extends H30T low-gain measurement to 1600°C
- Extends high-gain measurement to 450°C
- A separate item: the H30T does not reach 1600°C without it
Typical applications
Firefighting, and thermal work above the H30T unfiltered 600°C ceiling.
Technical data
Specifications.
| Thermal | |
|---|---|
| Thermal measurement with filter, low gain | to 1600 °C |
| Thermal measurement with filter, high gain | to 450 °C |
