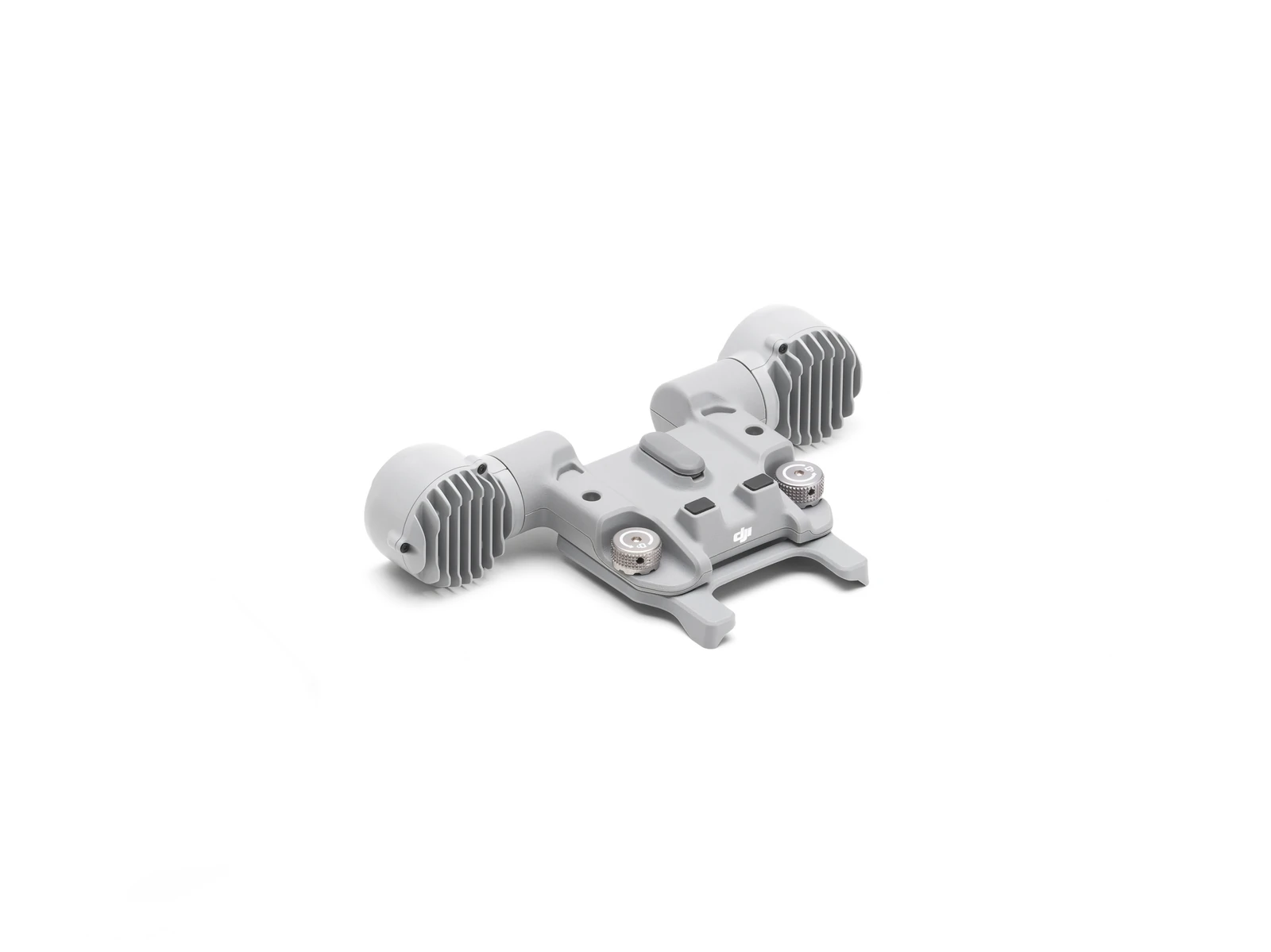

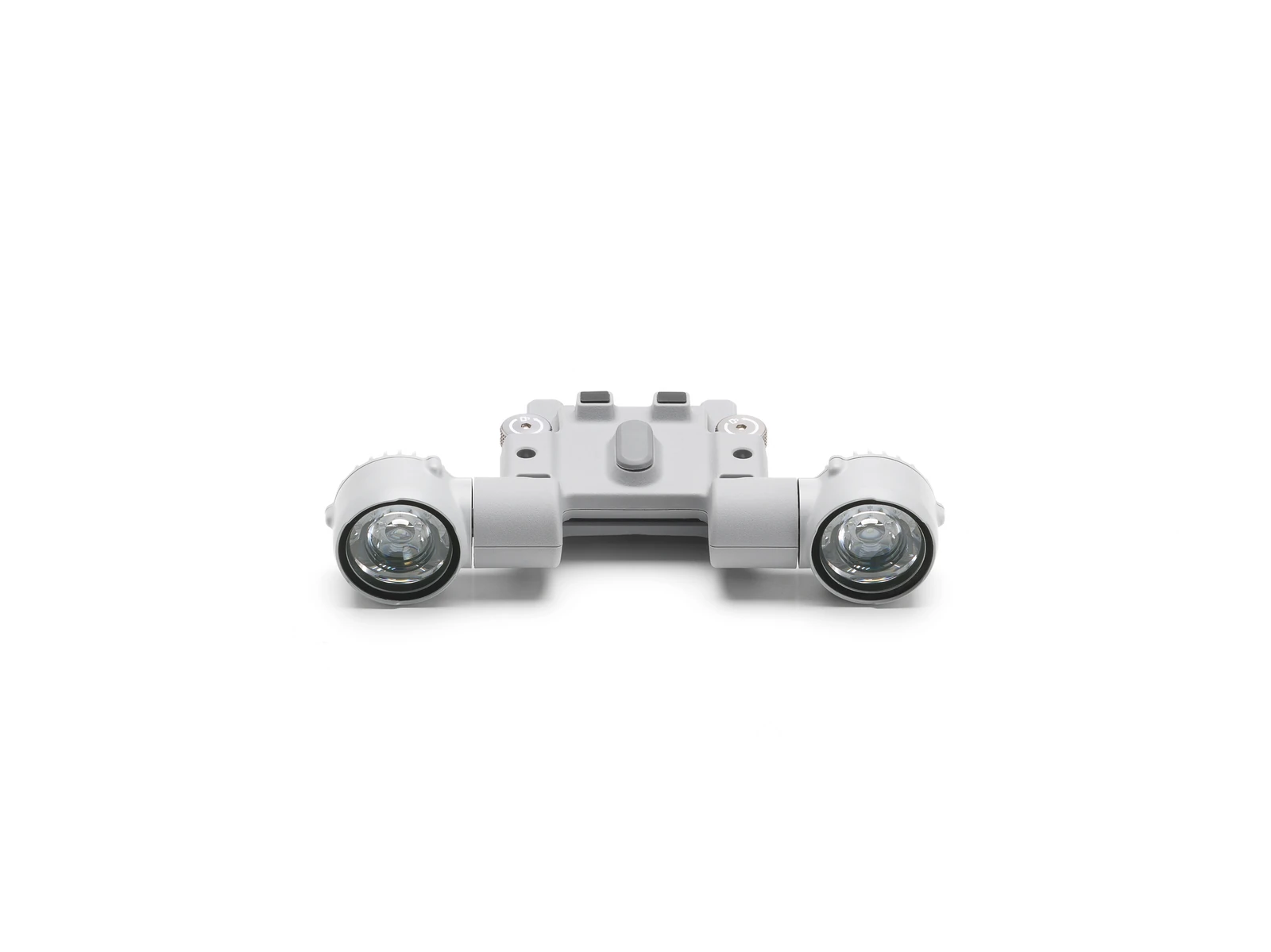

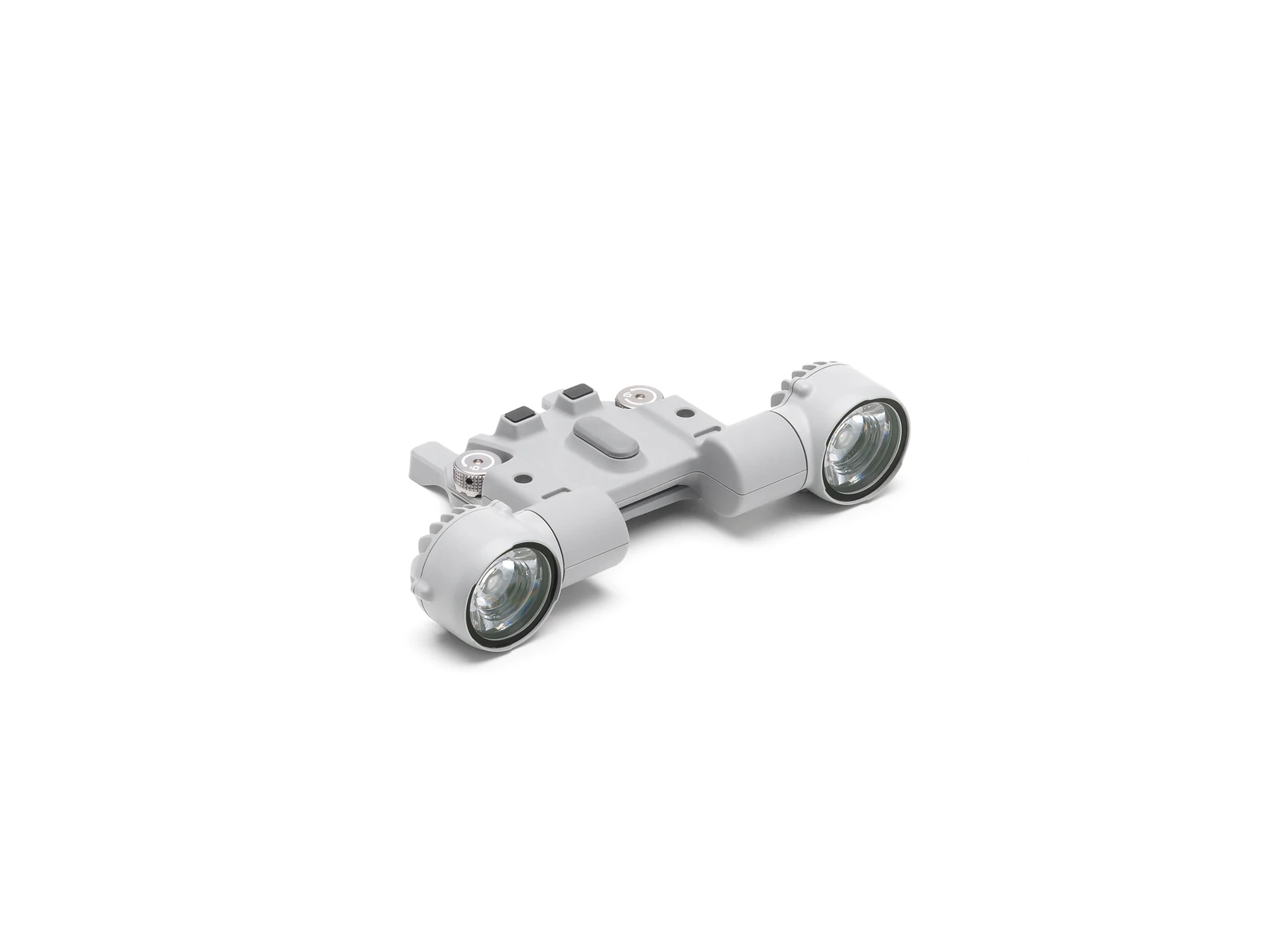

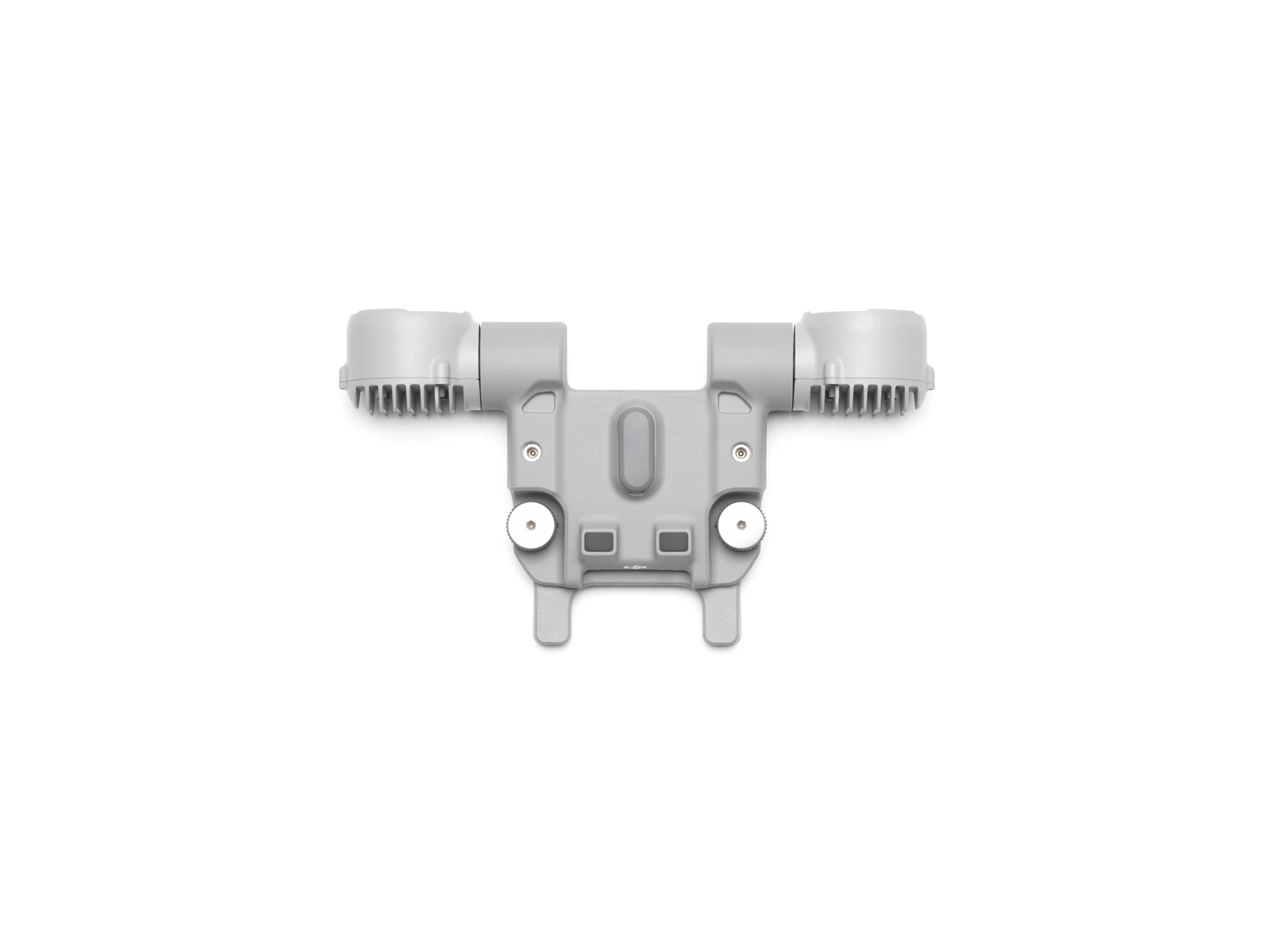

DJI AL1 Spotlight
DJI · AIQ-0003
A 91 g spotlight for the Matrice 4 and 4D Series, lighting 1,300 m² at 100 m, or 2,200 m² in wide field-of-view mode.
- Illumination at 100 m4.3±0.2 lux
- Coverage at 100 m1,300 m²
- Weight91 g
Overview
About this product.
The AL1 is a compact spotlight for the Matrice 4 and Matrice 4D Series. It puts 4.3 lux on a target at 100 m and 17 lux at 50 m, covering 1,300 m² at 100 m in normal mode. Wide field-of-view mode trades intensity for area and covers 2,200 m² at the same height.
It runs always-on or strobe, and can be set to follow the gimbal so the light tracks where the camera is pointed. At 91 g excluding the bracket it costs very little payload capacity, and it operates from -20°C to 50°C. Fitted to a Matrice 4D Series aircraft it is rated IP55.
Key capabilities
- 4.3 lux at 100 m, 17 lux at 50 m
- 1,300 m² coverage at 100 m, 2,200 m² in wide FOV mode
- Always-on and strobe modes
- Follows gimbal orientation
- 91 g excluding bracket
Typical applications
Night inspection, search and rescue, and any operation where the camera needs its own light.
Technical data
Specifications.
| Illumination | |
|---|---|
| Illumination at 100 m | 4.3±0.2 lux |
| Illumination at 50 m | 17±0.2 lux |
| Coverage at 100 m (normal) | 1,300 m² |
| Coverage at 100 m (wide FOV) | 2,200 m² |
| Beam modes | Always-on / strobe |
| General | |
| Weight (excluding bracket) | 91 g |
| Ingress protection (with Matrice 4D Series) | IP55 |
| Operating temperature | -20 to 50 °C |
Questions
Questions we’re asked.
The spotlight
What can the AL1 do?

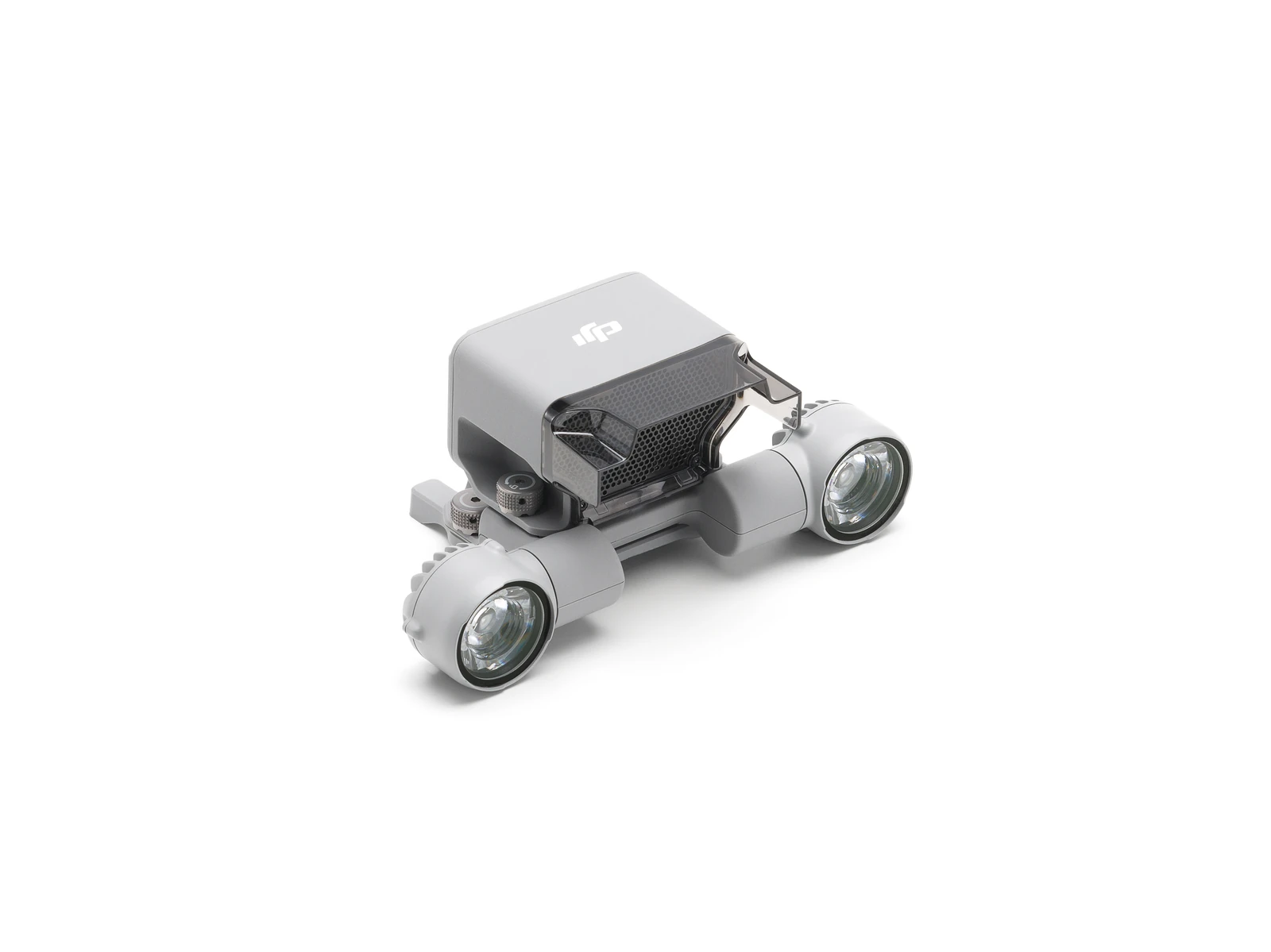

Constant and strobe modes, gimbal follow that can be switched off, and a wide-FOV mode that widens the beam with the wide camera at 1× zoom. It works alone or with the AS1 speaker stacked on top.
Which aircraft does it fit, and how?
The Matrice 4D Series and the Matrice 4 Series. Remove the bottom bracket, fit it before power-on, tighten the screws, re-tighten with the hex key on a dock, then activate online.
What changes in flight?
Upward obstacle avoidance is disabled once it is fitted, and avoidance switches off while the light is on; flight time drops; the housing gets hot. Never point it at eyes. Enable electronic defogging at altitude, and lower the brightness to save flight time.
Compatibility
Compatible aircraft.
- Matrice 4E
- Matrice 4T
- Matrice 4D
- Matrice 4TD
